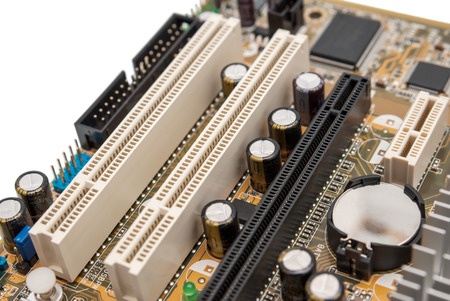

On-line system for measurement of PCI connector leads for true position, coplanarity, and center gap width to an accuracy of .0002". The system throughput is one (1) part per second, with up to two hundred and forty (240) measurements on a single part. The material handling system includes an input accumulator with singulation, delivery to the inspection system, part reject and delivery to next process cell.

On-line system for measurement of SCSI 3 connector leads for true position, coplanarity, and center gap width to an accuracy of .0002". The system throughput is one (1) part per second, with up to two hundred and forty (240) measurements on a single part. The material handling system includes an input accumulator with singulation, delivery to the inspection system, part reject and delivery to next process cell.

On-line system for measurement of right angle connector leads for true position, coplanarity, and center gap width to an accuracy of .0002". The system throughput is one (1) part per second, with up to two hundred and forty (240) measurements on a single part. The material handling system includes input conveyors, SLC, part singulator, pick and place gantry grippers, output conveyors and reject conveyors. The system performs the inspections, controls the gantry, and interfaces to the SLC for conveying part and system status information.

On-line system for measurement of 9 pin solder connectors for true position and coplanarity to an accuracy of 0.0002". The system throughput is one part per second with up to 18 measurements on a single part. The system signals either pass or fail to the PLC which activates the reject mechanism to remove the defective connector from the line. This final part integrity verification system rejects defective connectors prior to packaging and shipment.

On-line system for measurement of 25 pin solder connectors for true position to an accuracy of 0.0002". The system throughput is one part per second and provides up to 18 measurements on a single part. The system signals either pass or fail to the PLC which activates the reject mechanism to remove the defective connector from the line. This final part integrity verification system rejects defective connectors prior to packaging and shipment.
